1000 gallon smoker:
-
RK 1000 gallon smoker, offset style smoker
-
15’ long x 40” diameter x 3/8” thick 1000-gallon tank
-
Doors have 1-inch x 3/16-inch flat stock around the edges to seal up the pit
-
Counterweights on each door to make lifting the heavy doors a breeze
-
Metal roller handles on doors are long lasting
-
Pit will hold a steady temperature end to end all day long.
-
Dual grease drains
-
The pit is mounted on skids made from 3” x 1-1/2” channel iron, and components are fully welded.
-
The unit can be dragged on the skids if necessary, for small distances, but is built to be stationary unless mounted to a trailer.
-
Standard chamber rack configuration includes dual rack setup. Top racks pull out, while bottom racks are stationary.
-
Different configurations are offered for the racks in the chamber
-
All cooking surfaces in the pit and firebox are framed with 1-inch by 1-inch square tubing; 3/16-inch thick flat expanded metal was fitted and welded onto the frame.
-
Smoker painted with high-temperature black BBQ paint.

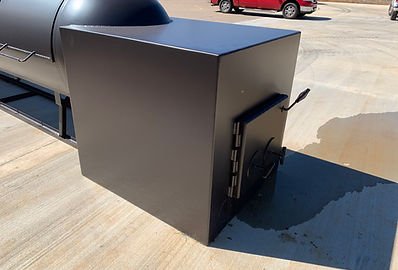

Insulated Firebox:
-
Long hours of design and testing have gone into this firebox, and it sets this 1000 gallon smoker apart!
-
Fully insulated 42” x 42” x 48” in size
-
Round inner box
-
Square outer box
-
½” x ¼” insulated door
-
Breather for regulating air flow.
-
Metal Spring handles mounted on 5/8-inch steel rods.
Smokestack:
-
This smokestack is extremely important to create a proper draft with perfectly even cooking temperature throughout the chamber.
-
Flanged for transit and going through the roof of your smoke room.
Temperature Gauges:
-
Constructed of stainless steel
-
3 inches in size
-
Will gauge from 50 to 550 degrees.
