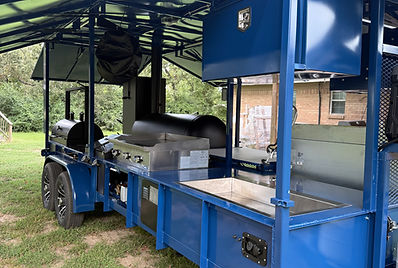

Paddy Wagon Custom Smoker Trailer
$70,027.50
​
Everything you need in a Custom Smoker Trailer.

Trailer:

• Brand new 6’11" x 18’ tandem-axle trailer with 7000-lb jack.

• 5200-lb trailer axles and springs

• All new lights and wiring.

• All new 15-inch tires and custom aluminum wheels.

• Well-weighted for towing.

• Spare tire and spare tire carrier mounted underneath the tongue of trailer.

• Custom Smoker Trailer painted color of choice

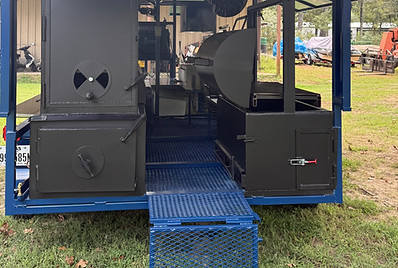

• Fold-down gate at rear for walk-in storage access



Smoker:

• Painted with high temperature black BBQ paint.

• Reverse smoker design uses two plates to transfer smoke and heat.

• 7.5-ft, 250-gallon tank, 1/4-inch-thick steel, 30 inches in height.

• Doors have 1-inch x 3/16-inch flat stock around the edges to seal up the pit; no counterweights are needed because they were cut 8" down from top, dead center, which also cuts down on the weight.

• When a door is opened, heat remains in the pit.

• Pit will hold a steady temperature all day long.

• Grease drain

• Pit is mounted well to the custom smoker trailer, and components are fully welded.

• Four fully removable racks for easy cleaning; bottom racks are roughly 30" x 29"; top racks are 30" x 26".

• All cooking surfaces in the pit and firebox are framed with 1-inch by 1-inch square tubing; 3/16-inch-thick flat expanded metal was fitted and welded onto the frame.



Smoke Stack:

• 6-inch x 28-inch smoke stack (schedule 40).

• Cooling baffle makes it extremely easy to control the temperature by pushing or pulling the wood handle.



Workstation/Bar:

• 72” x 12” x ¾” Stainless steel prep top in front of smoke chamber



Insulated Firebox:

• 1/2" plate steel inner firebox, lined with 2” insulation, enclosed by 1/4" plate steel outer fire box

• Up to 2 x wood burn times

• Cook in any weather without heat loss

• If you are looking to sleep or walk away for up to 6 hours, this is a MUST!

• Baffle for regulating temperature.

• All metal handles mounted on 5/8-inch steel rods.



LP Fire Starter:

• High pressure burner welded into firebox.

• High pressure needle valve.

• This option makes getting your fire started a quick and simple task.



Large Warming Box:

• 2-ft x 2-ft x 3 ½-ft box built out of ¼-inch steel

• Four grated, removable racks

• Able to cook with or without smoke



Deluxe-Adjustable Charcoal Grill:

• 48” x 24”

• Lightweight dome lid holds in heat

• Santa-Maria style hand-crank wheel to roll the cooking rack up and down for adjusting the distance between food and coals

• Double doors for easy ash removal and cleaning.

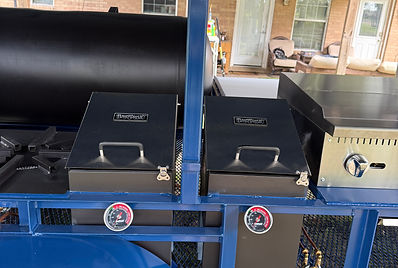

Temperature Gauges:

• Constructed of stainless steel

• 3 inches in size

• Will gauge from 50 to 550 degrees.



36” Commercial LP Griddle:

• Heavy Duty Stainless Steel, Manual Griddle

• Corrosion resistant, 3/4" thick plate

• Independent manual controls to save energy

• Versatile cooking for any occasion!

• Great for breakfast, burgers and much more!



Custom Star Burners:

• Constructed of 3/16-inch plate steel for durability.

• Low pressure LP burner.

• High pressure needle valves.



2x 4-Gallon Fryers:

• Stainless steel construction and drain valve for easy clean-up

• Heats from the “inside out”, not the bottom with a V-shaped bottom to collect loose batter below the heat source to prevent scorching

• Holds 4 gallons of oil

• Two Stainless Wire Mesh Baskets with Cool-Touch Handles – 11-in x 5.5-in x 4.25-in

• Fry Thermometer

• High Pressure LPG Regulator with Brass Control Valve



Trailer LP Plumbing:

• 20 PSI High Pressure Regulator

• 20, 30, 40lb tandem propane bottle rack.

• Custom smoker trailer plumbed with half-inch black pipe.



Roof:

• Protect your custom smoker trailer and gear from the elements

• Constructed using a steel frame and plate steel

• 24” overhang at rear of custom smoker trailer



Metal Fold-Up Awnings:

• Constructed of 12-gauge sheet metal welded to a square tubing metal frame

• Awning connected to roof by multiple heavy-duty hinges, with separate lock down mechanism for each awning panel

• Gas shocks lift awnings out and hold them in open position



12v Fold-up Sign on Roof:

• 3' x 6’-Fold-up Sign

• Make your presence known!

• 12v Actuator powers sign to up and down with the push of a button



Under Roof Table Holder:

• Holds up to five, 6' folding tables

• Keeps tables stored within reach, but without taking up space on the trailer



2x Under-Roof Utility Box:

• 24" x 36" lockable, steel toolboxes

• One used to house electrical components and the other can store any other items that you want to keep securely locked up and out of the way

• Welded into roof framing



TV Mount:

• Full-extension swivel mount

• Holds up to a 48" television (not included)



Wetsounds Sound System:

• STX Micro-4 Amp

• 2- ICON 8 tower speakers

• Kicker AM/FM Marine Radio with Bluetooth

• Fully wired and ready to rock

• Includes 12v marine battery and AC/DC converter



4500w Onan Generator:

• 4500 peak watts, 3700 running watts of power

• All the power your custom smoker trailer needs

• Digital inverter/remote start

• Quiet running generator at 52 decibels

• Dual Fuel, propane preferred to run off trailer LP system



LED Lighting:

• LED Lights mounted to roof to light up your work areas on your custom smoker trailer



2x Roof mounted fans

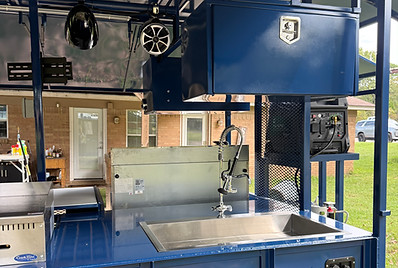

Sinks and Holding Tanks:

• 304-grade stainless steel, single basin sink.

• 15-gallon Fresh water holding tank.

• 18-gallon grey water holding tank.

• Shur-Flo 12-v water pump.

• RV water fill neck and water hose connect.



Hot Water Heater:

• 6-gallon LP hot water heater

• Provides 22 gallons of continuous hot water



Electrical System:

• 50-foot, 12-gauge extension cord.

• 8- 110-volt outlets throughout the custom smoker trailer



48” Work-top Refrigerator:

• Provides 11.2 cu. ft. of storage for cold foods

• Digital temp control

• 304 stainless steel interior for easy cleaning

• Self-closing doors

• Door lock for travel



Slide-Out Cutting Board:

• 5’ x 3’ x ¾” restaurant grade cutting board.

• Cutting board mounted to 36” full extension drawer slides.

• Capacity 500 lb.

• Lockable storage below

​

5-Drawer Toolbox:

• 5 slide-out drawers for keeping utensils and other necessities handy

• Steel construction

• Lockable for security



Utensil & Paper Towel Holders:

• Keeps your utensils and paper towels handy.

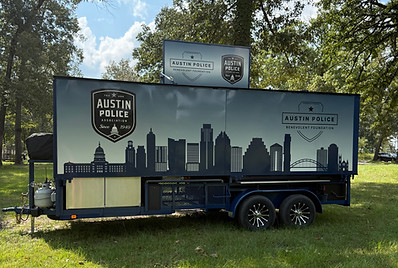

Wrap:

• Fully customized, professionally-designed wrap on awnings and fold-up sign to make your custom smoker trailer stand out
