The Bank Vault BBQ Trailer

$20,027.73



Trailer:

  • Built to last!

  • Brand new 6’ 11” x 17-ft tandem axle trailer.

  • 2000-lb. jack

  • Trailer Brakes

  • 3500-lb trailer axles and springs

  • All new lights and wiring.

  • All new 15-inch tires and wheels.

  • Spare tire and carrier

  • Well-weighted for towing.

  • Smoker painted with high-temperature black BBQ paint.

  • Custom trailer paint color or your choice.



Smoker:

  • Reverse smoker design uses three plates to transfer smoke and heat.

  • 10-ft, 350-gallon tank, 1/4 inch thick steel, 30 inches in height.

  • The three doors have 1-inch x 3/16-inch flat stock around the edges to seal up the pit; no counterweights are needed because they were cut 8" down from the top, dead center, which also cuts down on the weight.

  • When a door is opened, heat remains in the pit.

  • Pit will hold a steady temperature all day long.

  • Grease drain

  • The axes on the top of the pit function as doorstops; they are a unique and sturdy feature.

  • The pit is mounted well to the trailer, and components are fully welded.

  • The pit has six fully removable racks for easy cleaning; bottom racks are roughly 30" x 29"; top racks are 30" x 26".

  • All cooking surfaces in the pit and firebox are framed with 1-inch by 1-inch square tubing; 3/16-inch thick flat expanded metal was fitted and welded onto the frame.

  • Paper towel and utensil holders are mounted to easy access.

  • Locking system on all doors for safety and security.



Firebox:

  • 2-ft long and 2-ft wide by 2-ft tall.

  • Breather for regulating temperature.

  • All wooden handles mounted on 5/8-inch steel rods.



Large Warming Box:

  • 2-ft x 2-ft x 3 ½-ft box built out of ¼-inch steel

  • 4 grated, removable racks

  • Able to cook with smoke or without smoke

  • Baffle to control air flow.



Smokestack:

  • 6-inch x 28-inch smokestack (schedule 40).

  • Cooling baffle makes it extremely easy to control the temperature by pushing or pulling the wooden handle.



Deluxe Charcoal Grill:

  • 4’x 2’ cooking surface.

  • Great for burgers and hot dogs.

  • Double doors for easy fire starting and clean-up.

  • Extremely versatile for charcoal, Dutch-oven or griddle cooking.

  • Double doors for easy ash removal and cleaning.

  • The charcoal rack may be raised or lowered for temperature control.

  • All racks are removable.



Workstation/Bar:

Bar in front of Smoker-

  • Wooden bar top coated with 1/4" thick resin for long life.

Work Station-

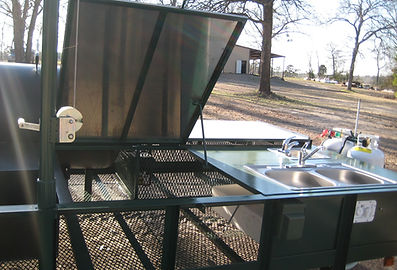

  • Stainless steel workstation and prep area



Custom Cutting Board:

  • 3’ x 4’ x ¾” restaurant grade cutting board.

  • Cutting board mounted to 36” full extension drawer slides. Capacity 500 lb. at full extension.



Sinks and Holding Tanks:

  • Double-basin stainless steel sink, and hand wash sink

  • 15-gallon fresh water holding tank

  • 15-gallon grey water holding tank

  • Shur-pro 12-volt water pump

  • RV water fill neck and water hose connect

  • Everything is plumbed and ready for you to get going!



12-Volt Electrical System:

  • 12-volt deep cycle marine battery with case

  • AC/DC inverter to charge the battery and run 12-volt systems when plugged into 110-volt

  • Everything on the trailer comes pre-wired, installed and ready to use

  • 110-Volt Electrical System:

  • 50-foot, 12 gauge extension cord.

  • 8 – 110-volt outlets



Temperature Gauges:

  • Constructed of stainless steel

  • 3- inches in size

  • Will gauge from 50 to 550 degrees.



Temperature Control System:

  • LED Read-out thermostat

  • 3-25 CFM Fans mounted to the firebox

  • This unit will keep the temperature consistent in your pit without lifting a finger.

  • Makes BBQ-ing a breeze.

  • Our systems are custom designed for our pits.



4 Gallon Fryer:

  • Designed to Never Burn Grease

  • Two-Wire Mesh Baskets Included

  • Drain Valve for Easy Clean Up



Custom Star Burners:

  • Constructed of 3/16-inch plate steel for durability.

  • Low-pressure LP burner.

  • High-pressure needle valves.



Boiler:

  • Winch to help pull heavy loads of shrimp and crawfish out of pots.

  • 10" diameter burner makes plenty of Room for large boiler pots.

  • Ask us about our stockpots and cast iron products!



LP Fire Starter:

  • High pressure burner welded into firebox.

  • High pressure needle valve.

  • This option makes getting your fire started in the firebox a quick and simple task.



Trailer LP Plumbing:

  • 20 PSI High Pressure Regulator

  • 20, 30, 40 lb tandem propane bottle rack.

  • Trailer plumbed with ½-inch black pipe.

  • 2- 30 lb. propane tanks included.
