The Closer BBQ Trailer


reverse smoker on trailer
Ford design on BBQ Trailer

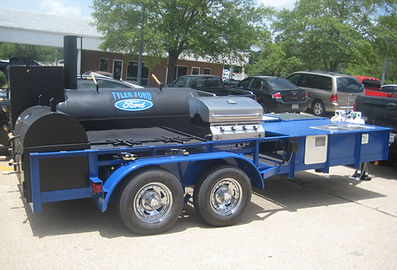

Tyler Ford Custom BBQ Trailer
Tyler Texas Ford BBQ Trailer
Temperatur controlled BBQ Trailer


  • Built to last!

  • Brand new 6’ 11” x 16-ft tandem axle trailer.

  • 2000-lb. jack

  • Trailer Brakes

  • 3500-lb trailer axles and springs

  • All new lights and wiring.

  • All new tires and chrome wheels.

  • Spare tire and carrier

  • Well-weighted for towing.

  • Smoker painted with high-temperature black BBQ paint.

  • Custom trailer paint color or your choice.

  • Comes with bill of sale.



  • Reverse smoker design uses three plates to transfer smoke and heat.

  • 7-ft, 250-gallon tank, 1/4 inch thick steel, 28 inches in height.

  • The three doors have 1-inch x 3/16-inch flat stock around the edges to seal up the pit; no counterweights are needed because they were cut 8" down from the top, dead center, which also cuts down on the weight.

  • When a door is opened, heat remains in the pit.

  • Pit will hold a steady temperature all day long.

  • Grease drain

  • The axes on the top of the pit function as doorstops; they are a unique and sturdy feature.

  • Pit is mounted well to the trailer, and components are fully welded.

  • The pit has six fully removable racks for easy cleaning; bottom racks are roughly 30" x 29"; top racks are 30" x 26".

  • All cooking surfaces in the pit and firebox are framed with 1-inch by 1-inch square tubing; 3/16-inch thick flat expanded metal was fitted and welded onto the frame.

  • Paper towel and utensil holders are mounted to easy access.

  • Locking system on all doors for safety and security.



  • 2-ft long and 2-ft wide by 2-ft tall.

  • Breather for regulating temperature.

  • All wooden handles mounted on 5/8-inch steel rods.


Small Warming Box:

  • 2-ft x 2-ft x 2 1/2-ft box built out of ¼-inch steel

  • 4 grated, removable racks

  • Able to cook with smoke or without smoke

  • Baffle to control air flow.



  • 6-inch x 28-inch smokestack (schedule 40).

  • Cooling baffle makes it extremely easy to control the temperature by pushing or pulling the wooden handle.


Deluxe Charcoal Grill:

  • 4’x 2’ cooking surface.

  • Double doors for easy fire starting and clean-up.

  • Extremely versatile for charcoal, Dutch-oven or griddle cooking.

  • Easy ash removal and cleaning.

  • Charcoal rack may be raised or lowered for temperature control.

  • All racks are removable.


Stainless Steel LP Grill:

  • Makes grilling fast and easy.

  • Great for cooking in a hurry



Bar in front of Smoker-

  • Stainless Steel Bar top

Work Station-

  • Stainless steel workstation and prep area with storage below.


Custom Cutting Board:

  • 3’ x 4’ x ¾” restaurant grade cutting board.

  • Cutting board mounted to 36” full extension drawer sliders. Capacity 500 lb. at full extension.


Sinks and Holding Tanks:

  • Double-basin stainless steel sink

  • 15-gallon fresh water holding tank

  • 15-gallon grey water holding tank

  • Hot water heater pumps out 22 gallons of continuous hot water.

  • Shur-Flo 12-volt water pump.

  • RV water fill neck and water hose connect.

  • Everything is plumbed and ready for you!


12-Volt Electrical System:

  • 12-volt deep cycle marine battery with case

  • AC/DC inverter to charge the battery and run the 12-volt system when plugged into 110-volt.

  • Everything on the trailer comes pre-wired, installed and ready to use.


110-Volt Electrical System:

  • 50-foot, 12 gauge extension cord.

  • 6 – 110-volt outlets


Temperature Gauges:

  • Constructed of stainless steel

  • 3- inches in size

  • Will gauge from 50 to 550 degrees.


Temperature Control System:

  • LED Read-out thermostat

  • 2-25 CFM Fans mounted to the firebox

  • This unit will keep the temperature consistent in your pit without lifting a finger.

  • Makes BBQ-ing a breeze.

  • Our systems are custom designed for our pits.


Custom Star Burners:

  • Constructed of 3/16-inch plate steel for durability.

  • Low-pressure LP burner.

  • High-pressure needle valves.


LP Fire Starter:

  • High-pressure burner welded into firebox.

  • High-pressure needle valve.

  • This option makes getting your fire started in the firebox a quick and simple task.


Trailer LP Plumbing:

  • 20 PSIHigh-Pressuree Regulator

  • 20, 30, 40lb tandem propane bottle rack.

  • Trailer plumbed with ½-inch black pipe.
